VIBRO-EΜ.2 is a result of specialized research and it is made by an elastomer that includes additional substances that improve its deflection and antivibration capabilities.The metal cover provides protection from various fluids, like oil and water. In addition it protects the main body of the antivibration mount from sunbeams increasing its life time.

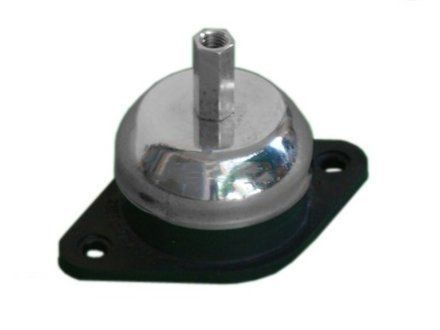

The metal cover has 1.5mm thickness and its from galvanized steel which prevent oxidation. Thus the rubber part is protected. The rest of the metal parts are covered by rubber and are protected from oxidation too. The top and bottom surface has special lining that increase friction and reduce the surface slipping. The top part Vibro EM2 has an M-10 thread and a tightening nut. The bottom base has two 9 mm holes.
VIBRO-EΜ.2 is a result of specialized research and it is made by an elastomer that includes additional substances that improve its deflection and antivibration capabilities.The metal cover provides protection from various fluids, like oil and water. In addition it protects the main body of the antivibration mount from sunbeams increasing its life time.

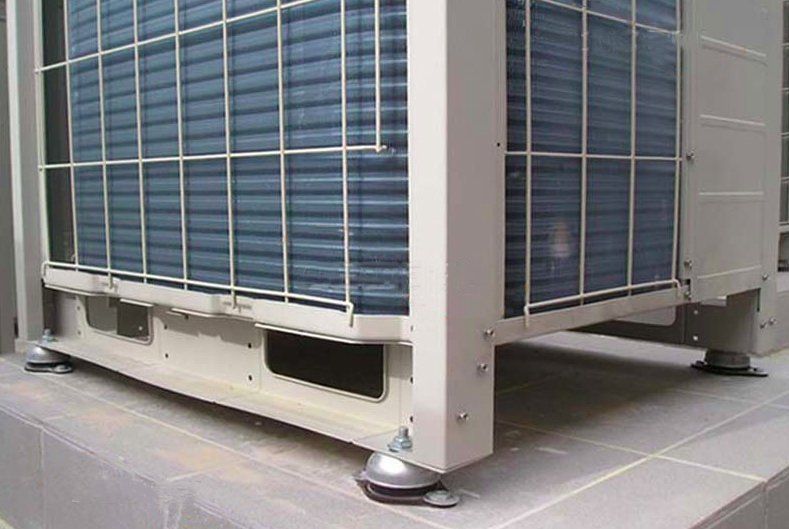

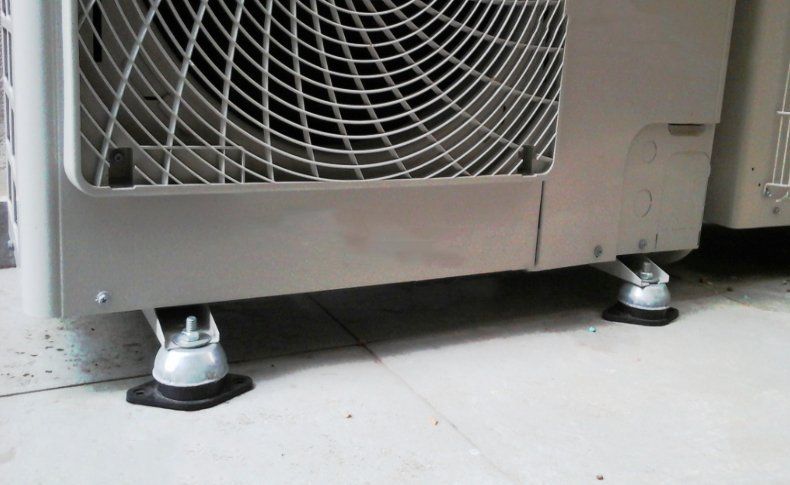

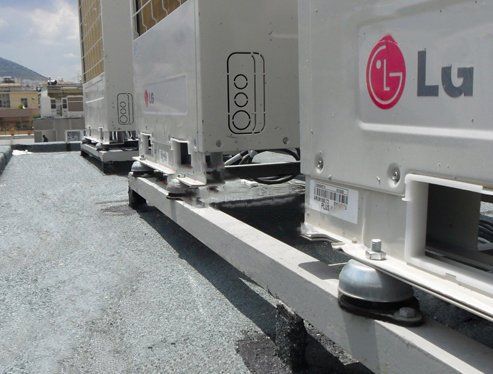

Anti vibration metal rubber mount Vibro - EM.2 is suitable for:
- Air handling units and conditioning
- Pumps
- Air compressors and ventilators
- Transformers and motor generators
- Cutting and printing machines
Load deflection curve Vibro EM.2 White
Technical information
| Material | Elastomer and galvanized metal sheet | |
| Length | 4.7'' | |
| Height | 1.8'' | |
| Maximal load range | 130 lbs to 440 lbs | |
| Maximal deformation | 0.2'' |
