NoiseBadge - Personal Noise Dosemeter System

Barriers to accurately assessing the noise exposure of workers are removed with the innovative Model 22 NoiseBadge system. Traditional systems rely on large, cumbersome units using cables and separate microphones which can easily become damaged or tangled in machinery. The revolutionary NoiseBadge is a self-contained noise measurement device that has no cables, display, or controls, making it an ideal solution for noise dosimetry because units can’t be tampered with during measurements.

Features

Everything you need for compliance with occupational noise regulations supplied in one user-friendly package:

• Meets International Standard IEC 61252:1997 for Personal Sound Exposure Meters & ANSI S1.25:1991 Personal Noise Dosimeters
• Meets EN 61000-6-3 (2007), EN61000-6-1 (2007) EMC generic emission and immunity standards for residential, commercial, and light industrial environments
• The ideal system for compliant assessment of workers’ industrial noise exposures
• Unique size and shape, innovative functional design
• Programmable for compliance with most worldwide regulations
• ‘Shake-to-wake’ function of dosemeters to extend battery life and operating time.
• Ergonomic Decibel Reader Unit with Integral Acoustic Calibrator
• Infra-red communication between Reader Unit and dosemeters
• Rechargeable Nickel Metal Hydride (NiMH) battery
• Outstanding Analysis & Reporting software supplied as standard (license-free)
• 7-year warranty*
• Intrinsically safe dosemeter available on special request.

Applications

• Ideal for lone workers, shift workers, or those operating in several locations
• Suitable where people are working with moving machinery, or in difficult to reach areas

Typical industries where the Model 22 Pulsar NoiseBadge is used include:

Manufacturing, Construction, Utilities (Gas, Water & Electricity), Local Authority & Government, Shipping, Entertainment & Leisure, Education & Higher Learning, Highway Maintenance, Haulage & Transport, Rail, Agriculture, Aviation, Public Transport, Emergency Services (Hospitals, Fire, Police), Chemical, Open Cast Mining, Printing, and Catering.

*2-year warranty extendable to 7 years with annual recalibration and service.

• The revolutionary dosimeter badge is a self-contained noise measurement device, also known as Personal Sound Exposure Meter (PSEM), that has no cables, displays, or controls, making it the perfect solution for noise dosimetry, because units cannot be tampered with easily or damaged during measurements.

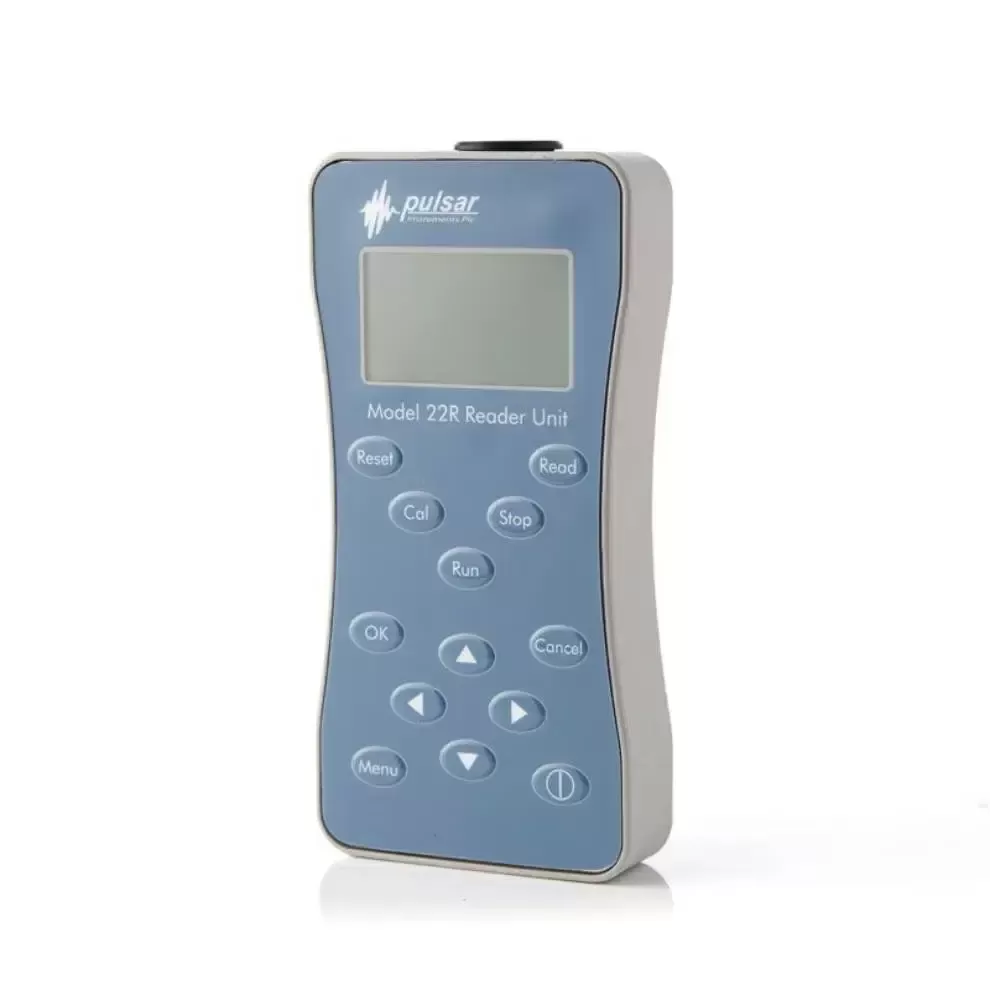

• A separate Decibel Reader unit communicates with the dosemeters and controls the programming, calibration, start-stopping, data logging, downloading, and storing of measurements. All key measurement parameters can be viewed on its large clear backlit LCD display screen, which also displays a time history graph of worker's daily noise exposure over an entire working day.
• The Reader contains an integral acoustic calibrator allowing the dosemeter to be calibrated prior to and following each noise measurement in accordance with international regulations; the dosemeter automatically achieves this by computing the Daily Exposure for European legislation or the Time Weighted Average for US-based legislation.
• Full ‘Time History’ information allows you to determine when key noise problems occur during a worker's day.
• Collect all the data essential to meet compliance with occupational noise regulations at the touch of a button including LAeq, LEP,d, % Dose, and TWA.
• Frequency weightings include 'A' weighted (range 70dB(A) to 130dB(A)). The additional ‘C’ frequency weighted peak Time History allows you to fully assess risks from impulsive noise in the workplace.
• Our effective, user-friendly software package, AnalyzerPlus, allows users to quickly analyze and transform the raw data into informative report formats, simplifying a potentially complex and time-consuming process.
